Cylindrical CR2 Lithium Manganese Dioxide Battery 3V Non Rechargeable

Lu’s Technology Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Cylindrical CR2 Lithium Manganese Dioxide Battery 3V Non Rechargeable

  • 1
  • 2

Brand Name : OEM

Model Number : CR-2

Place of Origin : China

MOQ : 100pcs

Price : Bargain

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000pcs/days

Delivery Time : 5-7 working days

Packaging Details : cartons

Battery Type : Limno2 CR2

Shape : Cylinder

Shipping : Customized

Color : Blue or Yellow or customized

Voltage : 3V

Discharge capacity : 800±50 mAh

Contact Now

Cylindrical Li/MnO2 Battery CR2 CR-2 Lithium Manganese Dioxide 3 V Battery Non-Rechargeable (Primary) batteries



Model: CR2 Lithium Manganese Dioxide Battery 3V

             3V Primary Lithium batteries CR2



Technical parameters



No. Items Characteristics
1 Nominal Capacity* 850 mAh
2

Discharge capacity

(continuously discharge under 10mA,till 2.0V end voltage)

800±50 mAh
3 Nominal Voltage 3V
4 Operating Temperature range -40~+85℃
5 Max. Pulse Current 2500 mA
6 Max. Continuous Discharge Current 1000 mA
7 Structures Manganese dioxide cathode, lithium anode, organic electrolyte, polypropylene separator and stainless steel cell can and cap, etc.
8 Weight for Reference About 11g

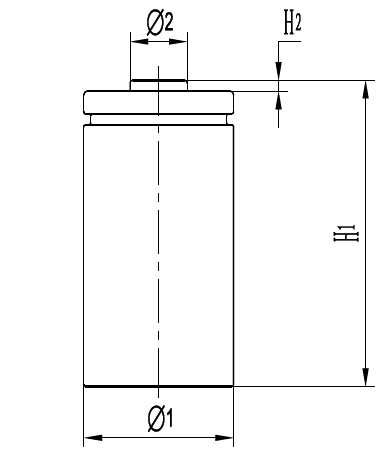

Outline figure is shown as follow

Cylindrical CR2 Lithium Manganese Dioxide Battery 3V Non Rechargeable



Model

Max. diameter

Ф1 ( mm )

Max. diameter

Ф2 ( mm )

Max. height

H1 ( mm )

Min. height

H2 ( mm )

CR2 15.6 6. 5 27.0 0.7



Key features:



High and stable operating voltage



Superior drain capability



Low self-discharge rate (less than 3% after 1year of storage at +20 )


Optional stainless steel container for low magnetic and nickle plated steelcontainer for more



safe design


Hermetic glass-to-metal sealing


Notch technology for safety vent is recommended


PTC for finished product is optional





APPLICATION:



Cylindrical CR2 Lithium Manganese Dioxide Battery 3V Non Rechargeable



Electronic characteristic:

No. Item Test condition Performance within one year under room temperature Performance after one year under room temperature
1 Open circuit voltage
Room temperature 20±2 ℃ ≥3.0V ≥3.0V
Low temperature -20±2 ℃ ≥3.0V ≥3.0V
High temperature 60±2 ℃ ≥3.0V ≥3.0V
2 Close circuit voltage Discharge load:10Ω
Room temperature 20±2 ℃ ≥2.60V ≥2.55V
Low temperature -20±2 ℃ ≥2.45V ≥2.40V
High temperature 60±2 ℃ 2.65V ≥2.60V







No. Item Test condition Performance within one year under room temperature Performance after one year under room temperature
3 Working life Discharge load:10mA
End voltage:2.0V
Room temperature 20±2 ℃ 750mAh ≥700mAh
Low temperature -20±2 ℃ ≥550mAh ≥500mAh
High temperature 60±2 ℃ 700mAh ≥650mAh
4 Discharge capacity (Celerity test at room temperature)

Discharge load:50mA

End voltage:2.0V

≥700mAh ≥650mAh



Picture:



Cylindrical CR2 Lithium Manganese Dioxide Battery 3V Non Rechargeable



Packaging



Dimension of box Net weight Gross weight
355mm×285mm×275mm 12KG 14KG

Normal package : 1080 pcs per box.
