Professional 1/2AA Lithium Battery ER14250 3.6 V 1200mah lisocl2 batteirs ER14250 For Utility Metering

Brand Name : OEM

Model Number : ER14250

Place of Origin : China

MOQ : 10pcs

Price : Bargain

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 pcs/Month

Delivery Time : 5-8 working days

Packaging Details : cartons

Capacity : 1.2Ah

Max. continuous current : 50mA

Max. pulse current : 100mA

Weight : Approx 10 g

Storage temperature (recommended) : +30C

Type : Li Socl 2

Contact Now

Model:ER14250 1/2AA Lithium Thionyl Chloride Battery 3.6V 1200mah

Technical data:

Model	ER14250
Voltage	3.6V
Capacity	1.2Ah
Max constant current of discharge	50mA
Max discharge current(pulse)	100mA
Weight	10g
Operating temperature range	-55~85℃
Jacket	PVC or Plastic case
Terminals	Pins/tabs/customized
Samples	Available

Application:

Utility Metering

Automatic Meter Reading

Medical Electronics

Memory Backup

Tracking Systems

Law Enforcement (RFID)

Earthquake Detectors

Digital Control Devices

Remote Monitory Systems

Electronic Toll Tags

Scientific Instruments

Portable Communication Equipment

Military Radio Stations

And other electric powered devices requiring small size

High power batteries.

Professional 1/2AA Lithium Battery ER14250 3.6 V 1200mah lisocl2 batteirs ER14250 For Utility Metering

Lithium Thionyl Chloride Battery 3.6V List:

International Model Size	Model Number	Max Dimension	Weight	Nominal	End Voltage	Nominal Capacity	Max Continuous Operating Current	Max Pulse Discharge Current
International Model Size	Model Number	mm	g	Voltage	V	mAh	mA	mA
AAA	ER10450	φ10.4X45.3	8	3.6	2	600(1mA)	25	60
	ER11120	φ11.5X12.0	2	3.6	2	100(0.2mA)	2	4
	ER13150	φ13.5X15.0	6	3.6	2	450(0.5mA)	10	30
L31	ER13460	φ13.5X46.0	14	3.6	2	1500(1mA)	60	100
1/2AA	ER14250	φ14.5X25.0	10	3.6	2	1200(0.5mA)	20	45
2/3AA	ER14335	φ14.5X33.5	13	3.6	2	1650(1.3mA)	75	150
AA	ER14505	φ14.5X50.5	22	3.6	2	2400(2mA)	100	200
2/3A	ER17335	φ17.0X33.5	21	3.6	2	2100(2mA)	100	200
	ER17505	φ17.0X50.5	25	3.6	2	3400(4mA)	120	200
A	ER18505	φ18.8X50.5	30	3.6	2	4000(2mA)	120	200
C	ER26500	φ26.2X50.0	53	3.6	2	8500(3mA)	130	300
D	ER34615	φ34.0X61.5	108	3.6	2	19000(2mA)	200	400

International Model Size	Model Number	Max Dimension	Weight	Nominal	End Voltage	Nominal Capacity	Max Continuous Operating Current	Max Pulse Discharge Current
International Model Size	Model Number	mm	g	Voltage	V	mAh	mA	mA
1/2AA	ER14250M	φ14.5X25.2	10	3.6	2	750(4mA)	120	250
2/3AA	ER14335M	φ14.5X33.5	13	3.6	2	1200(4mA)	300	500
AA	ER14505M	φ14.5X50.5	22	3.6	2	1800(10mA)	500	1000
2/3A	ER17335M	φ17.0X33.5	21	3.6	2	1700(5mA)	500	1000
A	ER18505M	φ18.8X50.5	30	3.6	2	3200(10mA)	800	1500
C	ER26500M	φ26.2X50.0	53	3.6	2	6500(10mA)	1000	2000
D	ER34615M	φ34.0X61.5	108	3.6	2	14000(10mA)	2000	3000
Application:Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries.

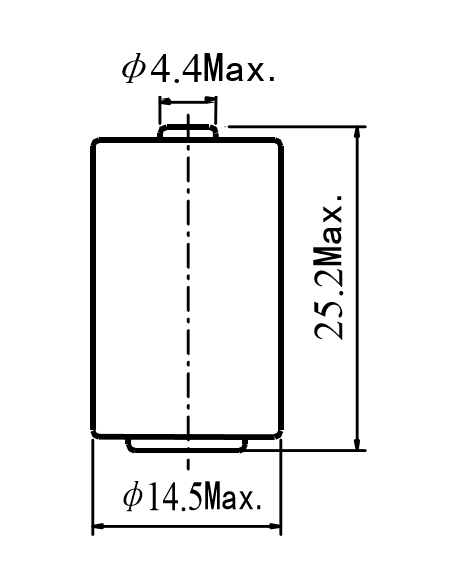

Drawing:

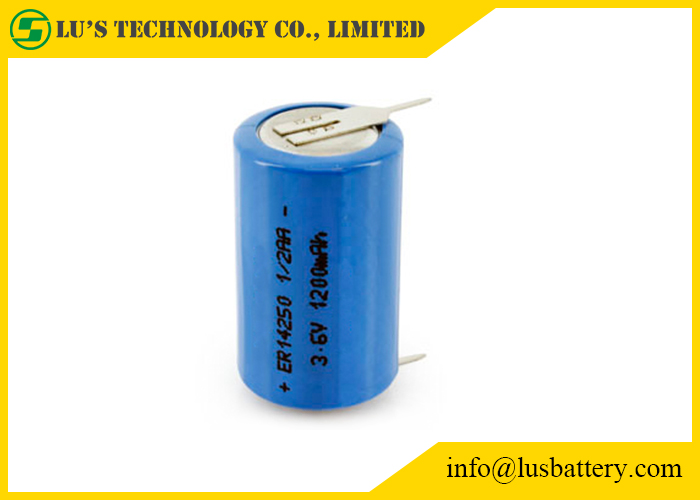

Picture:
