High Capacity Nickel Cadmium Battery Size D 5000mah Rechargeable Battery

Brand Name : OEM

Model Number : D5000

Place of Origin : China

MOQ : 100pcs

Price : Bargain

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs/Month

Delivery Time : 5-7 days

Packaging Details : cartons

Size : D

Type : Rechargeable

Shape : Cylindrical Cell

High Temperature : 70℃

Color : Customized

Voltage : 1.2V

Contact Now

Model:    Nickel Cadmium Battery



Voltage:  1.2V



Size:        D



Capacity: 5000mah



NICD D5000mah Rechargeable Battery Nickel Cadmium Cylindrical Cell





Performance And Test Methods:



Test Item Unit Specification Test Conditions Remarks
Discharge performance 20 ℃a h ≥5 Standard Charge/Discharge /
min ≥48 After Standard Charge, stored for 1~4h, then discharged by 5000mA (1.0ItA) to 0.9V. HU
-18℃ h ≥2 After Standard Charge, stored for 16~24h in -18±2℃, then discharged by 1000mA (0.2ItA) to 1.0V in -18±2℃. /
Charge (capacity) retention h/min ≥3h15min After Standard Charge, stored on open circuit for a period of 28days, then discharged by 1000mA (0.2ItA) to 1.0V. /
Endurance in cycles cycle ≥50 Appendix-table 3 /
Permanent charge endurance A:≥3h45min B:≥42min 2nd Appendix-table 4 /
A:≥3h45min B:≥42min 3rd
A:≥2h30min B:≥24min 8th
A:≥2h30min B:≥24min 9th
Over charge Discharge A h/min ≥4h15min Appendix-table 5 /
Discharge B min ≥36
Safety device operation Not disrupt or burst Undergo a forced discharge at constant current 1000mA(0.2ItA) to 0V. Then discharged by 5000mA (1.0ItA) for 60min. /
Storageb hour ≥5

Stored on open circuit for 12 months.

Then standard charge/discharge.

/
Charge acceptance / / IEC 61951-1 2013 7.9 Reference
Internal resistance ≤18 Within 1~4h after standard Charge (1000Hz)
Weight g 116(approx) / Reference
Vibration No leakage, no fire, no explosion IEC 62133 2012 7.2.2 /
Free fall No fire, no explosion IEC 62133 2012 7.3.3 /

a) Five cycles is permitted b) Unless otherwise stated, the cell shall be discharged by 1000mA(0.2ItA) to 1.0V before test.

Notice:Test conditions is drawn according to IEC 61951-1 2013; Please refer to the related description of the standard.





Application of NiCd Battery



Cordless Phones



Camcorders,



Digital Cameras



Emergency Backup Lightings



Mining Light



LED Torch



Alarm System



Pocket Flashlights



Power Tools



E-Toys



E-Tooth Brusher



Brushes Shaver



Metal Detectors



Medical Device





Characteristics:



High capacity and long cycle life​



Rapid charge performance



Low inner resistance and low self-discharge



Safety and reliability



Wide temperature range



Specially designed battery can be used in high and low temperature





Notes:



1: Ta: Ambient Temperature



2: Approximate charge time from discharged state, for reference only.



3: IEC 61951:2003 Cycle Life Test:



Cycle number Charge Rest Discharge
1 0.1C×16hrs None 0.25C× 2hrs20mins
2-48 0.25C× 3hrs10mins None 0.25C×2hrs20mins
49 0.25C× 3hrs10mins None 0.25C× 1.0V/cell
50 0.1C×16hrs 1-4hr(s) 0.2C×1.0V/cell
Cycles 1 to 50 shall be repeated until the discharge duration on any 50th cycle becomes less than 3hrs





Caution:


(1) Reverse charging is not acceptable.



(2) Charge before use. The cells/batteries are delivered in an uncharged state.



(3) Do not charge/discharge with more than our specified current.



(4) Prevent short circuit, do not incinerate or disassemble the cell/battery.



(5) Do not solder directly to the cell/battery for a long time.


(6) The life expectancy may be reduced if the cell/battery is subjected adverse conditions like: extreme temperature, deep cycling, excessive overcharge/ over-discharge.



(7) Store the cell/battery in a cool and dry place. Always discharge batteries before assemble or solder.



(8) Always discharge batteries before bulk storage or shipment.



(9) Do not mix batteries of different types and capacities.

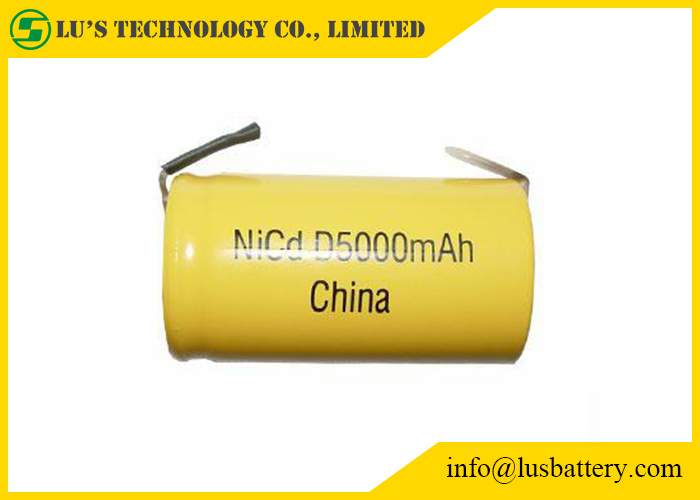

D5000mah Rechargeable Battery NICD 1.2V Cell Picture:





High Capacity Nickel Cadmium Battery Size D 5000mah Rechargeable Battery
