LP401230 100mah Rechargeable Lithium Polymer Battery Customized Terminals

Brand Name : OEM

Model Number : LP401230

Place of Origin : China

MOQ : 10pcs

Price : Bargain

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000 pcs/Month

Delivery Time : 7-15 days

Packaging Details : cartons

Capacity : 100mah

Type : Li-Polymer

PCM : Yes

Terminals : Customized

Nominal Voltage : 3.7V

Charging Voltage : 4.2V

Contact Now

Model:



Li-Polymer battery 401230



3.7V rechargeable batteries



Polymer lithium battery PL401230



Lithium ion battery



Li-ion Polymer Battery



Lithium Polymer Battery 401230 3.7V 100mah





Li-Polymer battery Product Advantages:



1) Environmental friendly



2) High density of energy



3) Light weight



4) Low self-discharge



5) Low internal resistance



6) Long cycle life, chargeable up to 500 or 1000 times



7) No memory effect



8) Doesn’t contain Mercury, No fire, No explosion, No leakage



9) Very good and quick charge, capability can be charged to 90% within 10 min.



10) Thickness can be adjusted while width and height keep the same





Major Application:



1) MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products



2) Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.





Specification:





No.



Item



General Parameter



Remark



1

Rated Capacity



Typical



100mAh

Standard discharge(0.5C5A) after Standard charge



Minimum



95mAh
2

Nominal Voltage



3.7V

Mean Operation Voltage



3

Voltage at end of

Discharge



2.5V

Discharge Cut-off Voltage



4

Charging Voltage



4.2±0.03V
5

Internal Impedance



≤300mΩ

Internal resistance measured at AC 1KHZ after 50% charge



6

Standard charge



Constant Current 0.2C5A/20mA

Constant Voltage 4.2V

0.01 C5A cut-off



Charge time : Approx 6.0h



7

Standard discharge



Constant current

0.5C5A /50mA

end voltage3.0V



50mA




Standard Test Conditions:



Test should be conducted with new batteries within one week after shipment from our factory



and the cells shall not be cycled than five times before the test.



Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃



and relative humidity of 45~85%.



If it is judged that the test results are not affected by such conditions, the tests may be



conducted at temperature 15~30℃ and humidity 25~85%RH.





Appearance



There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect



commercial value of battery.

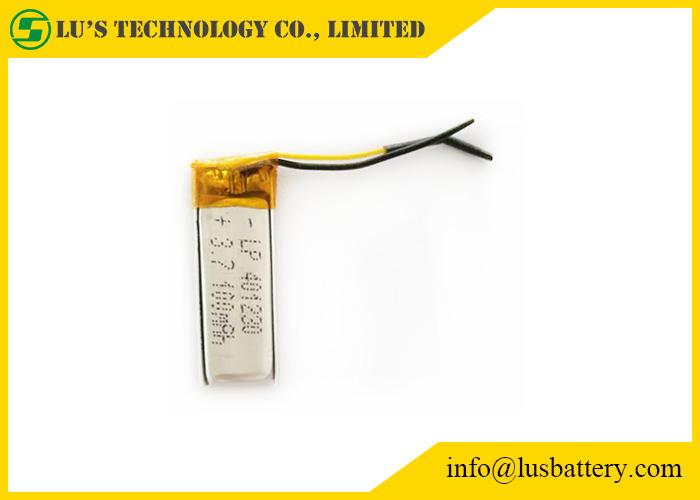

Polymer Lithium Battery 3.7V 100mah LP401230:







LP401230 100mah Rechargeable Lithium Polymer Battery Customized Terminals
