Model:
6F22 Nickel Metal Hydride Battery 9V 280mah NIMH
Specification:
| Type | Sealed Ni-MH Prismatic Battery pack |
| Size | Ni-MH 9V |
| Mode | 6F22 |
| Nominal Voltage | 8.4V |
| Nominal Capacity (20℃,0.2CA discharge to 7.0V) | 280mah |
| Typical Capacity | 290mah |
| Minimum Capacity | 270mah |
| Average Weight | 56g |
| Height | 48.5mm |
| Width | 26.5mm |
| Thickness | 17.5mm |
| Trickle Current | 9~15mA |
NIMH Application:
MP3, Walkman, E-toys, E-tooth brusher, Brushes shaver, LED torch, Alarm system, Fire
alarm, Mining light, Sex toys, Adult toys.
NIMH Features:
1) High energy density
2) Low self-discharge
3) Long service life
4) Chargeable up to 500 or 1000 times
5) Excellent performance of high rate charge and discharge
6) Low internal resistance
Quality guarantee period:
Guarantee time for one year due to the processing and raw material defectiveness.
Suggestion: The products before delivery would be charged 20-80% capacity according to the
transportation distance and packing condition. While checking the capacity, please discharge
the battery at 0.2C to 1.0V/cell; then charge and discharge the battery at by standard current.
If the storage time over 3 months or above, please discharge the battery at the current 0.2C to
1.0V/cell, then charge the battery at 0.1C for 15 hours, after that place for 20mins, discharge
the battery at 0.2C to 1.0V/cell. After this activation, check the capacity by the standard
current charge and discharge the battery. The first time use suggested to take standard
charge method to charge the battery to prevent from damage to battery.

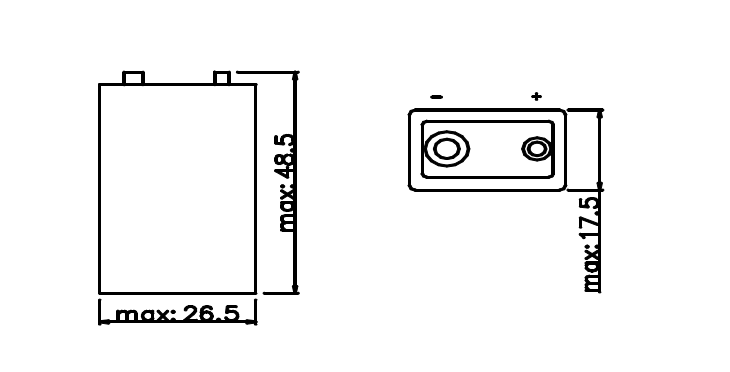

9V Battery Drawing:

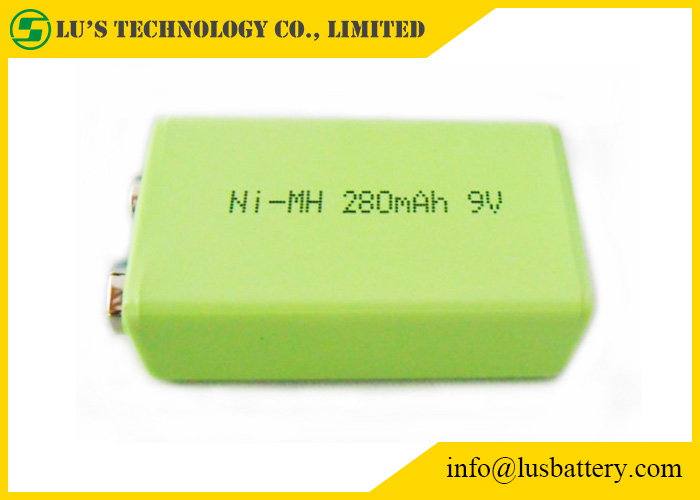

NIMH 9V Battery 280mah:
